CDP Configuration

CDP (Cisco Discovery Protrocol):

CDP is used for finding athe Cisco Device in the nNetwork. It can only be enabled on Cisco Devices, and & can only find Cthe cisco devices.
Consider the tTwo Cisco Switches as below:

CDP

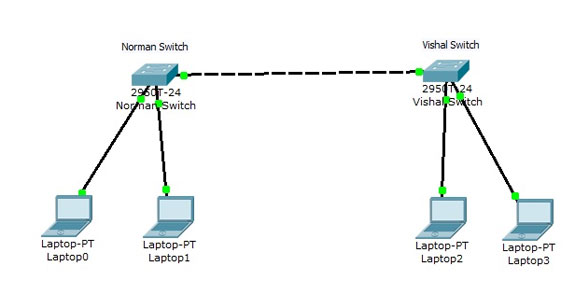

As shown in figure above, there are two Cisco switches – Norman and Vishal Switch.

Configuring The CDP in Norman Switch

Norman_Switch(Config)# cdp run                        →        for enabling CDP

Norman_Switch(config)# do show cdp neighbors

Norman_Switch(config)# do show cdp interfaces      →      for Verifying

Norman_Switch(config)# do show cdp entry

Norman_Switch(config)# no cdp run             →       for disabling CDP

Similarly doing same on Vishal Switch

Switch Memory

Similar to a router, a switch also has three types of memory:

  • Running-config,  which stores the running-configuration. Volatile memory.
  • Startup-config, which stores the saved configuration. It is non-volatile memory.
  • Flash memory, in which the IOS is stored in a .bin file.

Switch Security:

Port security

Consider a Switch that has two PCs Connected with the following MAC Address:

Port-security


Configureing the Switch interface with port security. If other PC’s are connected to it, the pPort will be sShut down. This mMeans other PCspc can’t connect to the Switch.
Switch> enable
Switch# configure terminal
Switch(Config)# hostname Norman
Norman(Config)# interface range f0/1-2
Norman(Config-if)# switchport mode access
Norman(Config-if)#exit
Norman(Config)# interface f0/1
Norman(Config-if)# switchport port-security mac-address 0090.2B53.C7A9
Norman(Config-if)# switchport port-security violation shutdown
Norman(Config-if)# exit
Norman(Config)# interface f0/2
Norman(Config-if)# switchport port-security mac-address 0001.427D.48AD
Norman(Config-if)# switchport port-security violation shutdown
Norman(Config-if)# exit

Now, if another PCpc connects to F0/1 or F0/2 of the switch, it will not be able to connect.
These above ports will shut down.

Creating Password:

These commands are similar to router commands.
Switch> enable
Switch# configure terminal
Switch(Config)# enable secret norman123

For Console
Switch(config)# line console 0
Switch(config-line)# password norcon123
Switch(config-line)# login
Switch(config-line)# exit

For Telnet
Switch(config)# line vty 0 1
Switch(config-line)# password nortel123
Switch(config-line)# login
Switch(config-line)# exit

Switch(config)# service password-encryption
Switch(config)# do show running-config
Switch(config)# do write memory (for saving configurations)
Switch(config)# do show startup-config
