InterVLAN Routing

InterVLAN Routing:

InterVLAN Routing is also called Router on a Stick . As we Know, that PCs on different VLAN Cannot communicate with each other, which means they can’t ping each other, since they are assigned to logically to different broadcasts. InterVLAN routing is done for them to communicate.

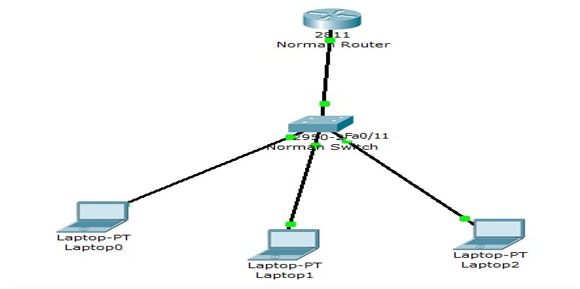

As shown in the figure below:Figure below

InterVLAN

All these PCs are in three different VLANs, even though they can communicate through INterVLAN Routing.

Create three VLANs in Norman Switch, as explained in the first practical

Let’s say -

Developers: VLAN 10 : Ports F0/1-5

Marketing: VLAN 20 : Ports F0/6-10

Accounting: VLAN 30 : Ports F0/11-15

Configuring Switch

Switch> enable

Switch# configure terminal

Switch(Config)# hostname Norman_Switch

Norman_Switch(Config)# vlan 10

Norman_Switch(Config-vlan)# name Developers

Norman_Switch(Config)# exit

Norman_Switch(Config)# vlan 20

Norman_Switch(Config-vlan)# name Marketing

Norman_Switch(Config)# exit

Norman_Switch(Config)# vlan 30

Norman_Switch(Config-vlan)# name Accounts

Norman_Switch(Config)# exit

Norman_Switch(Config)# interface range f0/1-5

Norman_Switch(Config-if)# switchport mode access

Norman_Switch(Config-if)# switchport access vlan 10

Norman_Switch(Config-if)# exit

Norman_Switch(Config)# interface range f0/6-10

Norman_Switch(Config-if)# switchport mode access

Norman_Switch(Config-if)# switchport access vlan 20

Norman_Switch(Config-if)# exit

Norman_Switch(Config)# interface range f0/11-15

Norman_Switch(Config-if)# switchport mode access

Norman_Switch(Config-if)# switchport access vlan 30

Norman_Switch(Config-if)#exit

Norman_Switch(Config)# interface f0/24  (Trunk To Router)

Norman_Switch(Config-if)# switchport mode trunk

Norman_Switch(Config-if)#exit

Norman_Switch(Config)# do show vlan

Router Configuration

Router> enable

Router# configure terminal

Router(config)# hostname Norman_Router

Norman_Router(Config)# interface f0/0

Norman_Router(Config-if)# no ip address

Norman_Router(Config-if)# no shutdown

Norman_Router(Config-if)#exit

Norman_Router(Config)# interface f0/0.1 (creating Sub interface)

Norman_Router(Config-if)# encapsulation dot1q 10 (10 is VLAN ID of Developers)

Norman_Router(Config-if)# ip address 192.168.10.1  255.255.255.0

Norman_Router(Config-if)# exit

Norman_Router(Config)# interface f0/0.2

Norman_Router(Config-if)# encapsulation dot1q 20

Norman_Router(Config-if)# ip address 192.168.20.1  255.255.255.0

Norman_Router(Config-if)# exit

Norman_Router(Config)# interface f0/0.3

Norman_Router(Config-if)# encapsulation dot1q 30

Norman_Router(Config-if)# ip address 192.168.30.1 255.255.255.0

Norman_Router(Config-if)# exit

Assign the IP Address

Developers: 192.168.10.1-255

Marketing: 192.168.20.1-255

Accounts: 192.168.30.1-255

Ping from 192.168.10.1 to 192.168.30.1

C:\> ping 192.168.30.1

Pinging 192.168.30.1  with 32 bytes of data:

Reply from 192.168.30.1 :bytes=32 time=20ms TTL=254

Reply from 192.168.30.1 :bytes=32 time=20ms TTL=254

Reply from 192.168.30.1 :bytes=32 time=20ms TTL=254

Reply from 192.168.30.1 :bytes=32 time=20ms TTL=254

Ping Statistics for 192.168.30.1 :

Packets: Sent=4, Received=4 & Lost=0 (0% Loss)

Approximate round trip times in milli-seconds:

Minimum = 10ms , Maximum = 20ms , Average = 15ms
