Switch Configuration

Switch Basic Configuration:

If we have to configure the switch and connect three PCs at the Port F0/1, F0/2, and F0/3, we will take the Switch of 8 Ports.After booting the Switch, the switch will have the prompt similar to a router.

Switch> enable

Switch# configure terminal

Switch(Config)# hostname Norman_Switch

Norman_Switch(config)# interface f0/1

Norman_Switch(config-if)# switchport mode access

Norman_Switch(config-if)# exit

Norman_Switch(config)# interface f0/2

Norman_Switch(config-if)# switchport mode access

Norman_Switch(config-if)# exit

Norman_Switch(config)# interface f0/3

Norman_Switch(config-if)# switchport mode access

Norman_Switch(config-if)# exit

Norman_Switch(config)# exit

Norman_Switch#

All the ports will be UP and all three PCs can ping each other, as they are in a LAN.

Switch Memory

Similar to a router, a switch also has three types of memory:

  • Running-config,  which stores the running-configuration. Volatile memory.
  • Startup-config, which stores the saved configuration. It is non-volatile memory.
  • Flash memory, in which the IOS is stored in a .bin file.

Switch Security:

Port security

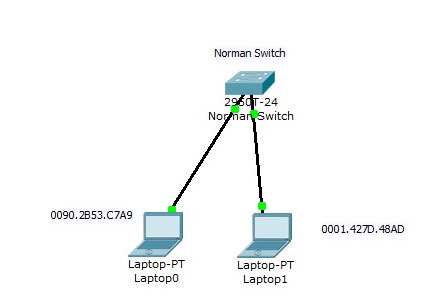

Consider a Switch that has two PCs Connected with the following MAC Address:

Port-security
Configureing the Switch interface with port security. If other PC’s are connected to it, the pPort will be sShut down. This mMeans other PCspc can’t connect to the Switch.
Switch> enable
Switch# configure terminal
Switch(Config)# hostname Norman
Norman(Config)# interface range f0/1-2
Norman(Config-if)# switchport mode access
Norman(Config-if)#exit
Norman(Config)# interface f0/1
Norman(Config-if)# switchport port-security mac-address 0090.2B53.C7A9
Norman(Config-if)# switchport port-security violation shutdown
Norman(Config-if)# exit
Norman(Config)# interface f0/2
Norman(Config-if)# switchport port-security mac-address 0001.427D.48AD
Norman(Config-if)# switchport port-security violation shutdown
Norman(Config-if)# exit

Now, if another PCpc connects to F0/1 or F0/2 of the switch, it will not be able to connect.
These above ports will shut down.

Creating Password:

These commands are similar to router commands.
Switch> enable
Switch# configure terminal
Switch(Config)# enable secret norman123

For Console
Switch(config)# line console 0
Switch(config-line)# password norcon123
Switch(config-line)# login
Switch(config-line)# exit

For Telnet
Switch(config)# line vty 0 1
Switch(config-line)# password nortel123
Switch(config-line)# login
Switch(config-line)# exit

Switch(config)# service password-encryption
Switch(config)# do show running-config
Switch(config)# do write memory (for saving configurations)
Switch(config)# do show startup-config
