This article explains how to install and configure Windows Software Update Service (WSUS) on Microsoft Windows Server 2012. Free step by step guide for WSUS Server installation and configuration on Windows Server 2012

Let’s get started

1. Login to the domain server(Test.abc.com)

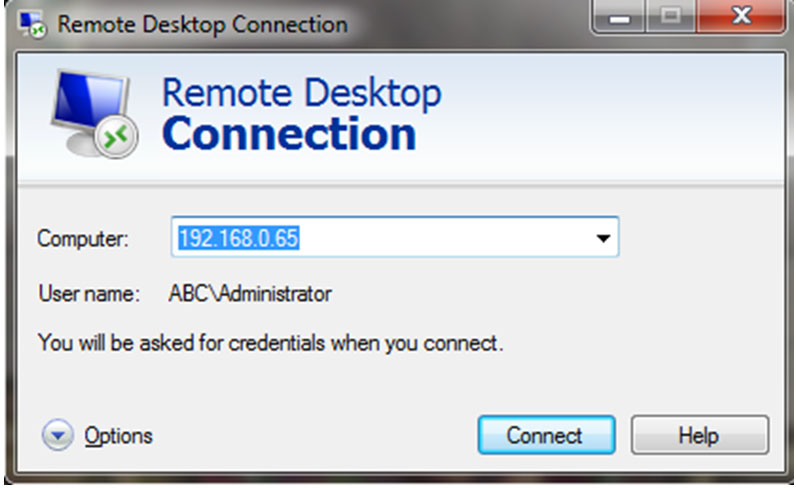

2. Now let’s start with login onto the server as shown below.

WSUS Server Configuration on Windows Server 2012

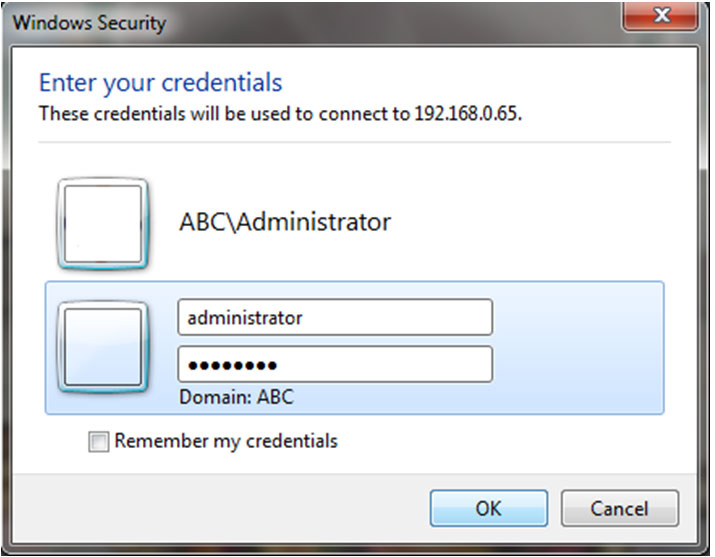

3. Give username & password (abc\administrator) & click on ok as shown below.

Give username & password

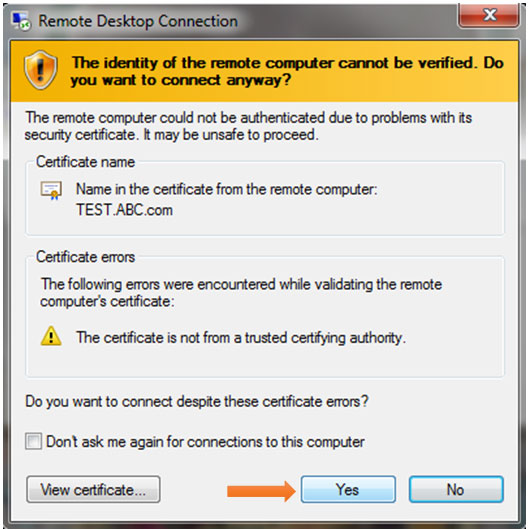

4. On the certificate verification window click on Yes button.

certificate verification

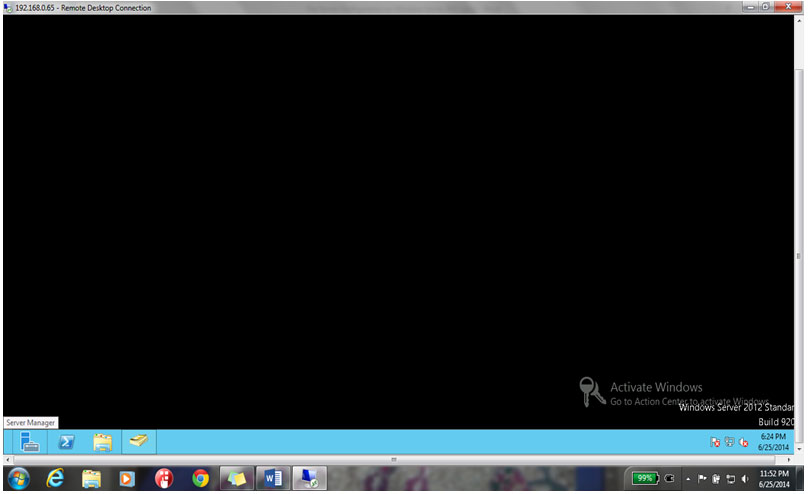

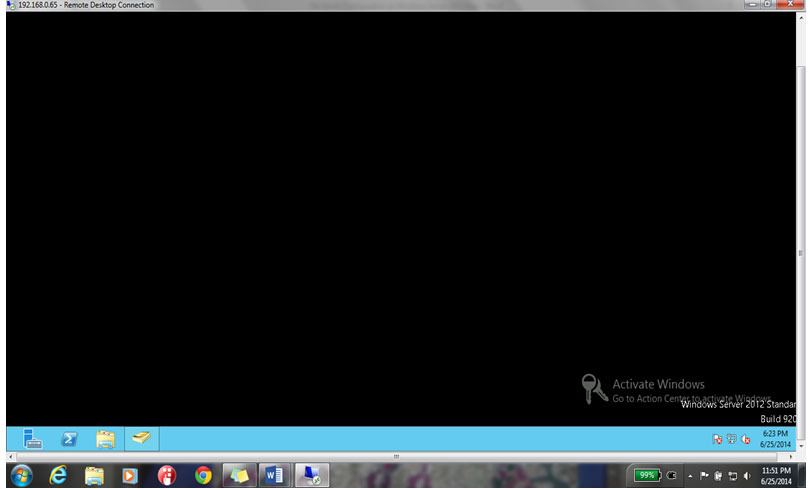

5. The next windows will show the server desktop.

next windows will show the server desktop

6. Open Server Manager from the left down corner of server desktop as shown below

Server Manager

7. Click on Add Roles and Features from Server Manager Dashboard as shown below.

Roles and Features

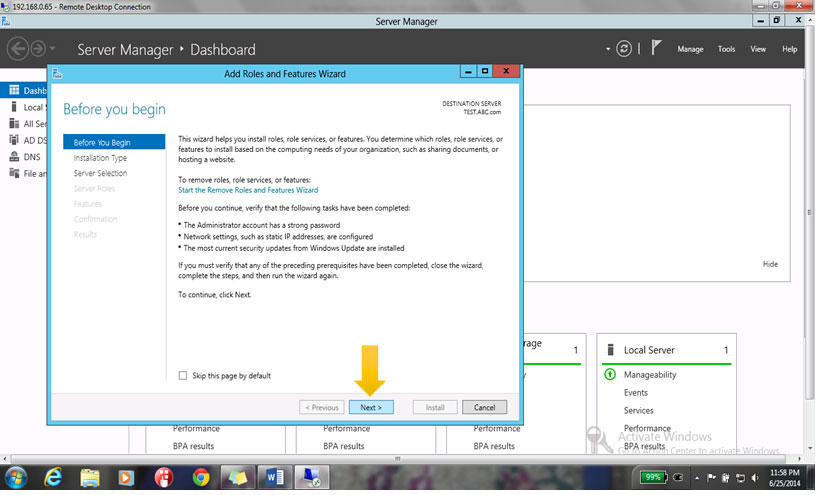

8. Click on Next to begin the process as shown below

Next to begin the process

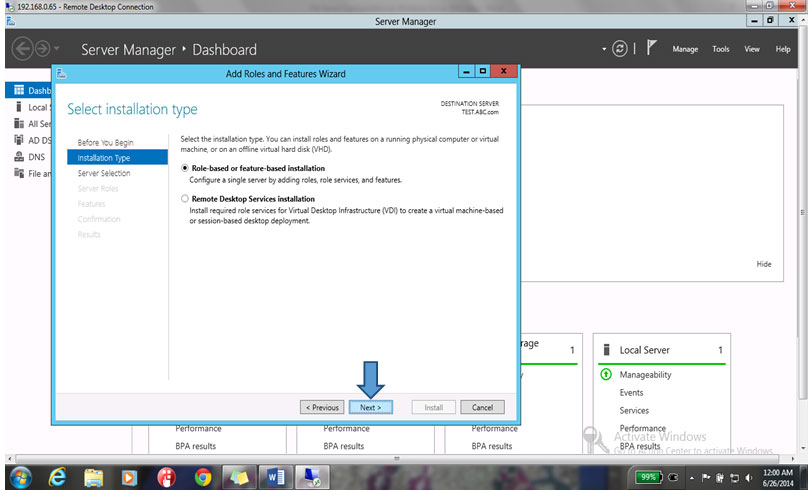

9. By default role based or featured based Installation is selected already so we will continue with default settings and click on Next as shown below

featured based Installation

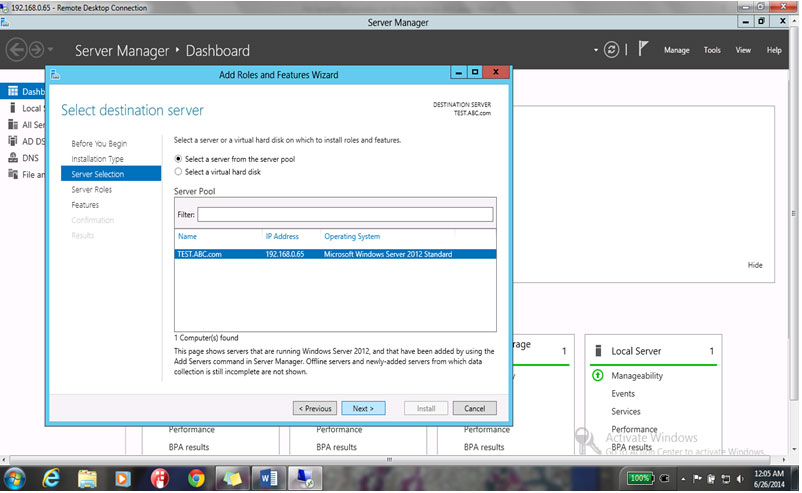

10. On next window continue with default server(Test) selection and click on Next as shown below

server(Test) selection

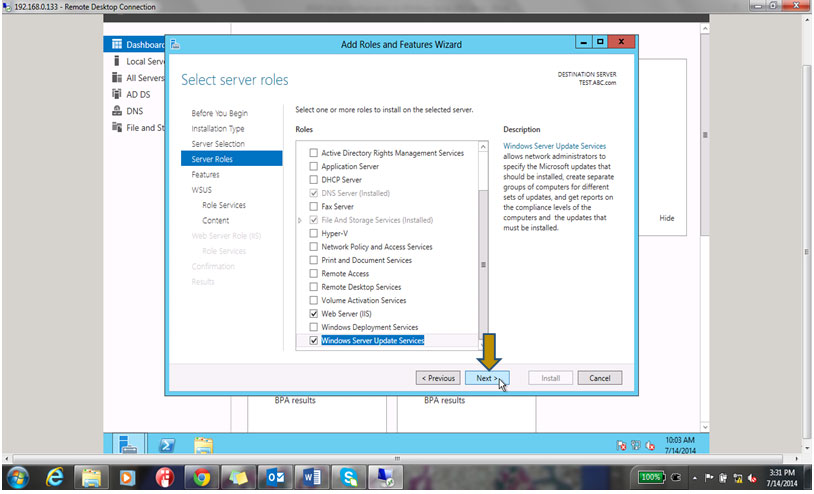

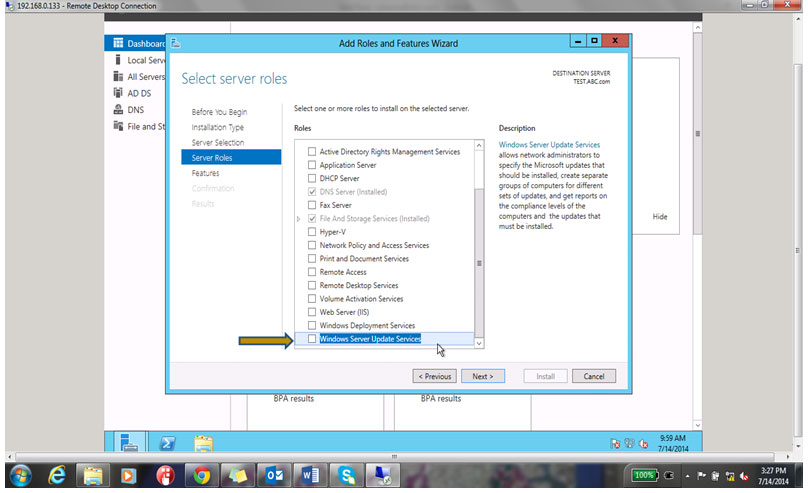

11. On the next screen scroll down and select Windows Software Update Service (WSUS) as shown below.

Service (WSUS)

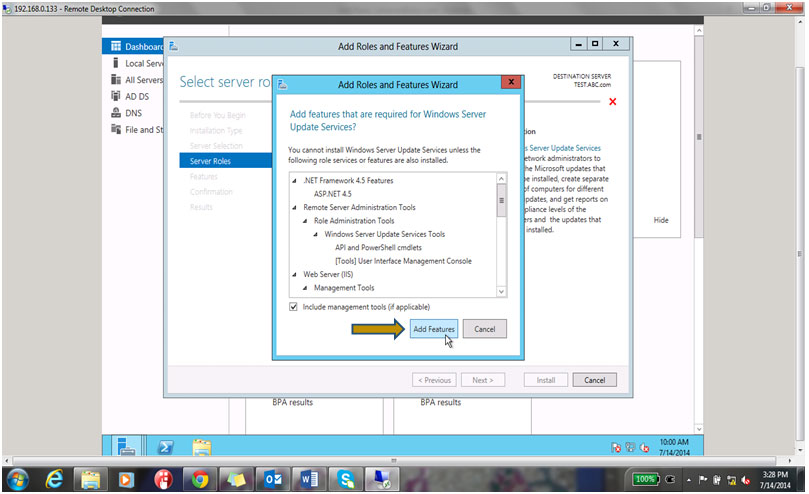

12. As you check on the WSUS Role the Next window will open for add Roles and features wizard. Click on Add Features button as shown below

WSUS Role

13. Once you click on Add Features button it will come back to the last window and you can see Web IIS role us also selected along with WSUS. Click on Next as shown below

Features button

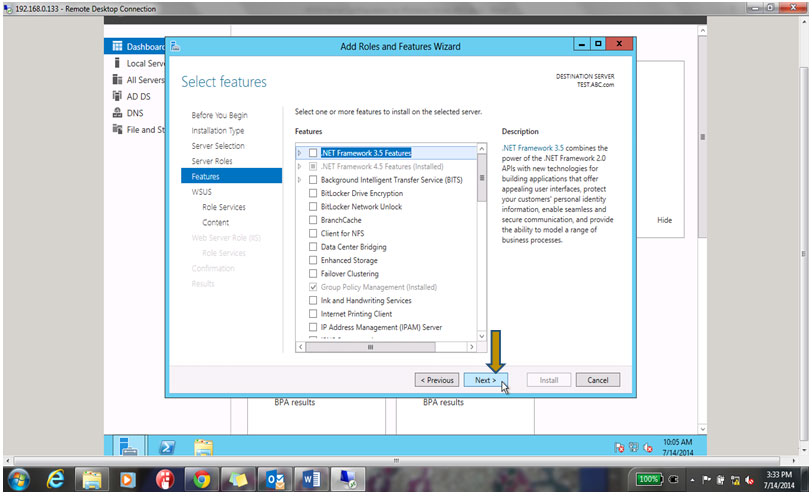

14. Click on Next to continue as shown below

Next to continue

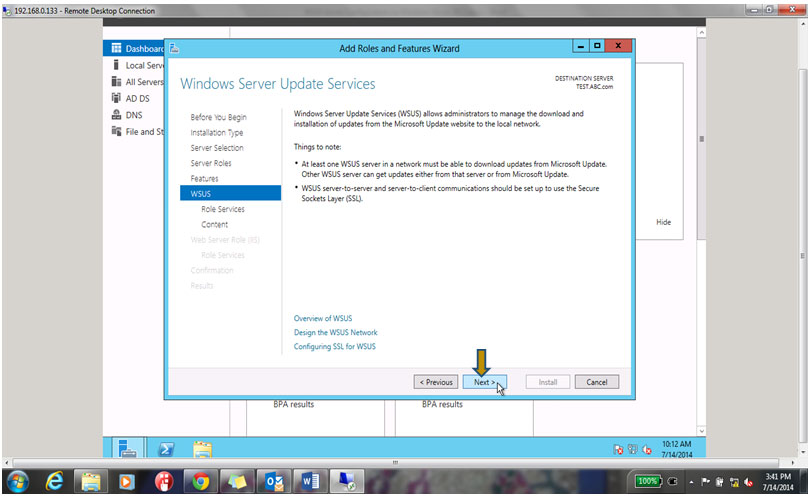

15. Click on Next to continue as shown below

Next to continue

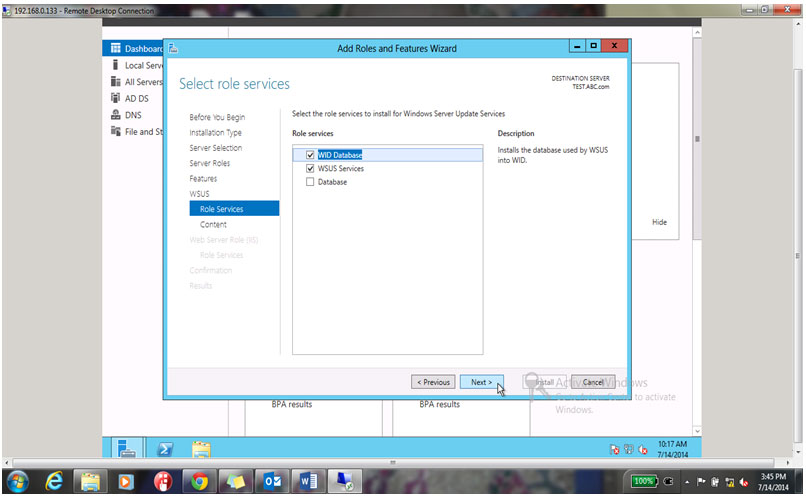

16. Continue with default selection and click on Next as shown

default selection

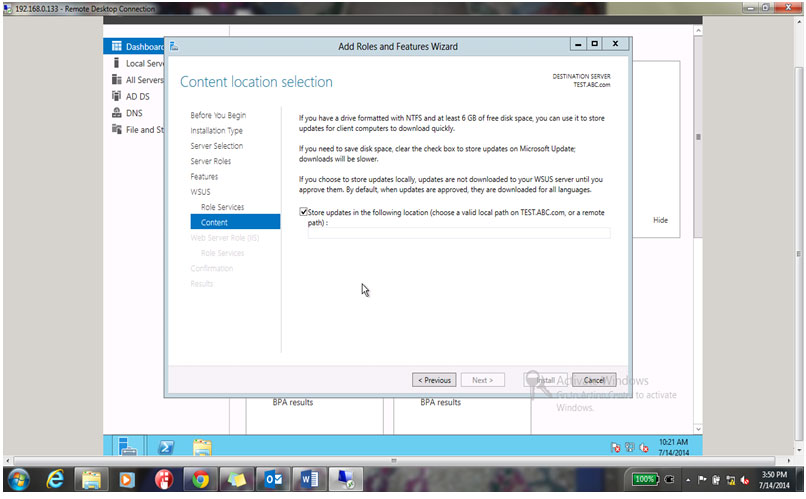

17. On the next window we have to provide the Path to store the Microsoft updates.

window we have to provide

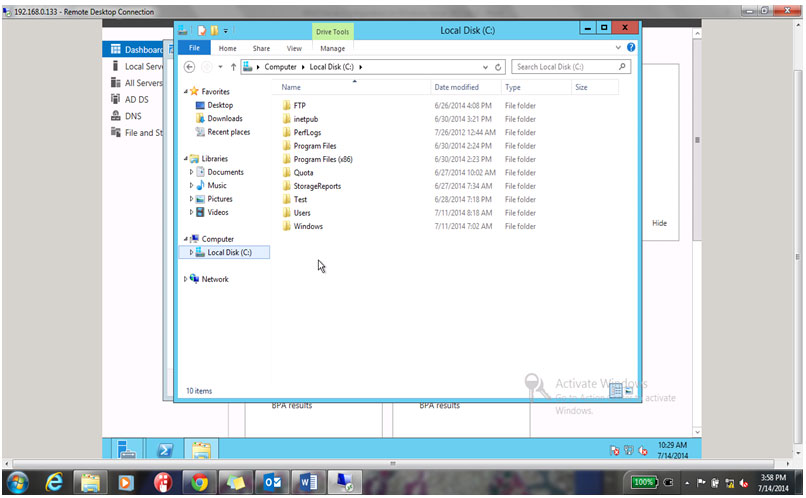

18. Create the folder in C drive with the name of WSUS as shown below

C drive with the name of WSUS

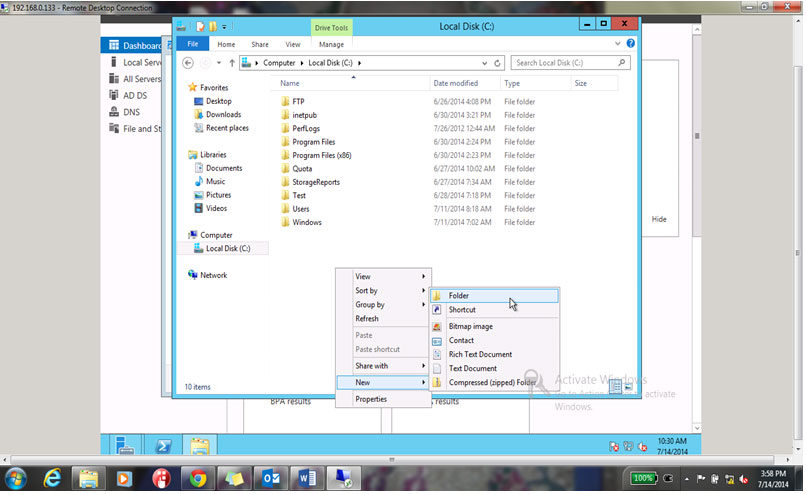

19. Right Click and select New -> Folder

Click and select New -> Folder

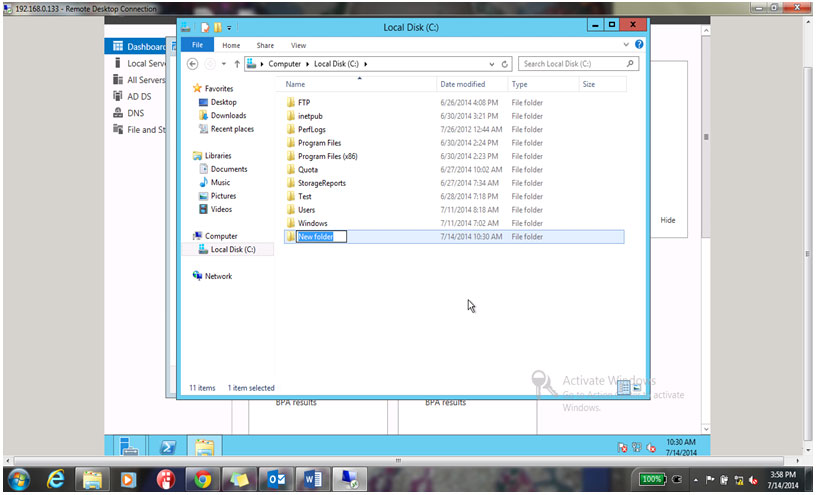

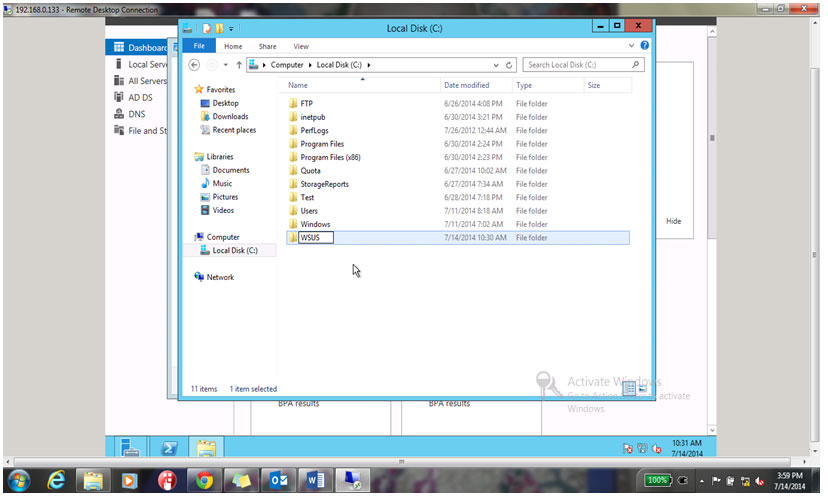

20. Rename this folder to WSUS

Rename this folder to WSUS



20-1

21. Provide the created folder path in the WSUS setup store location and click on Next as shown

created folder path in the WSUS

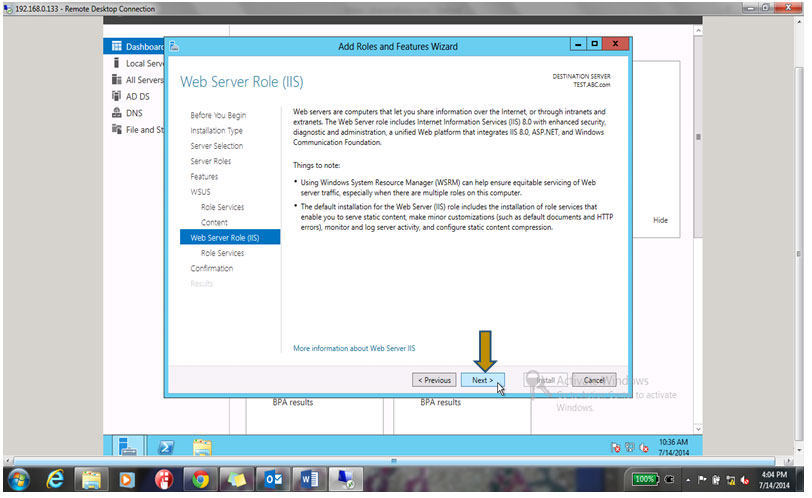

22. Click on Next on Web Server Role(IIS) window as shown below

Web Server Role(IIS)

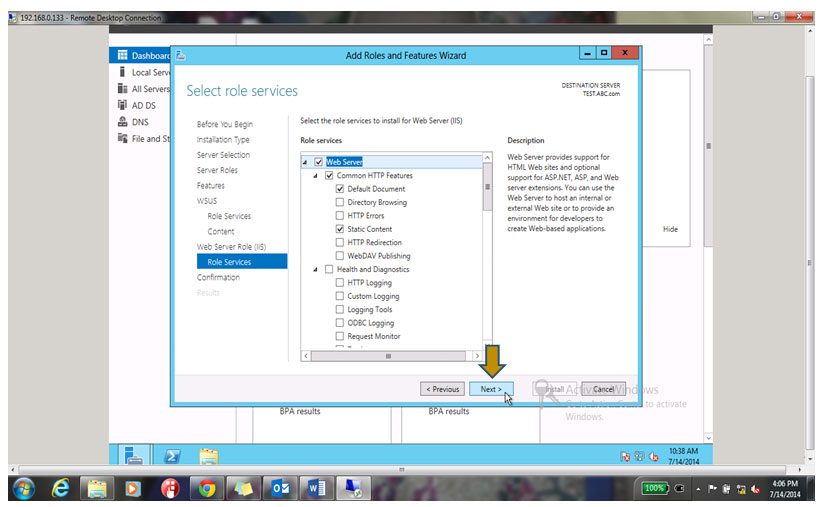

23. Click on Next to continue

Click on Next to continue

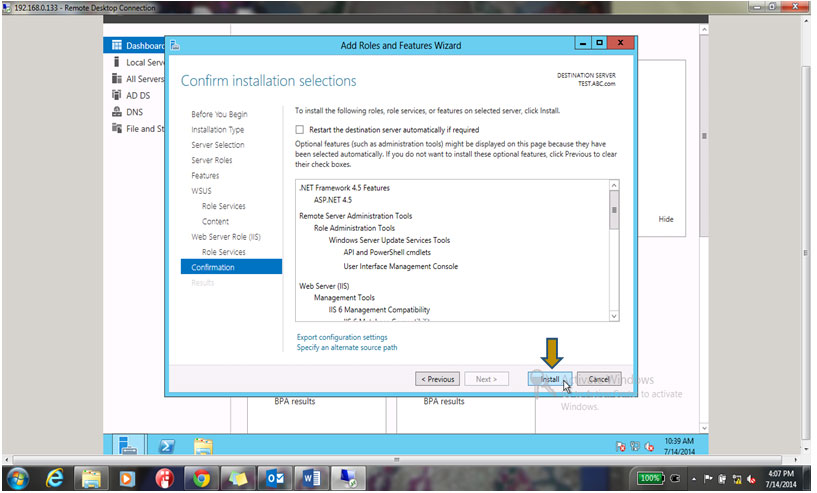

24. Click on Install to start the installation for WSUS Role

Install to start the installation for WSUS Role

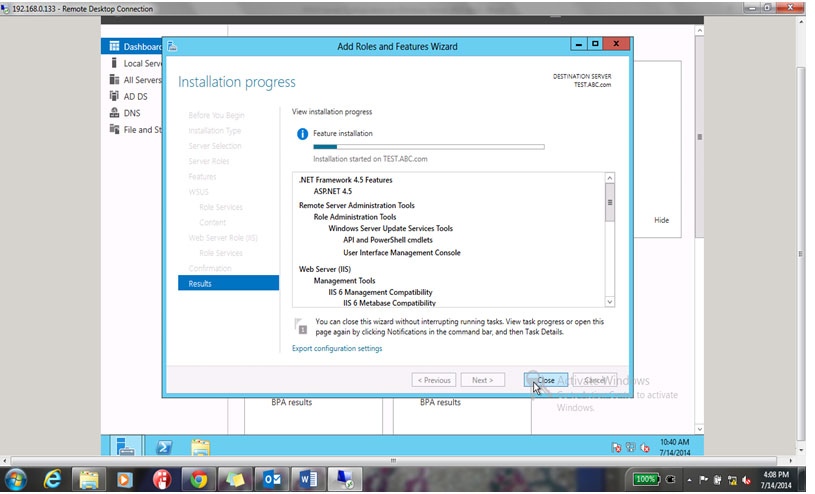

25. You can see installation for WSUS server role has been started

installation for WSUS

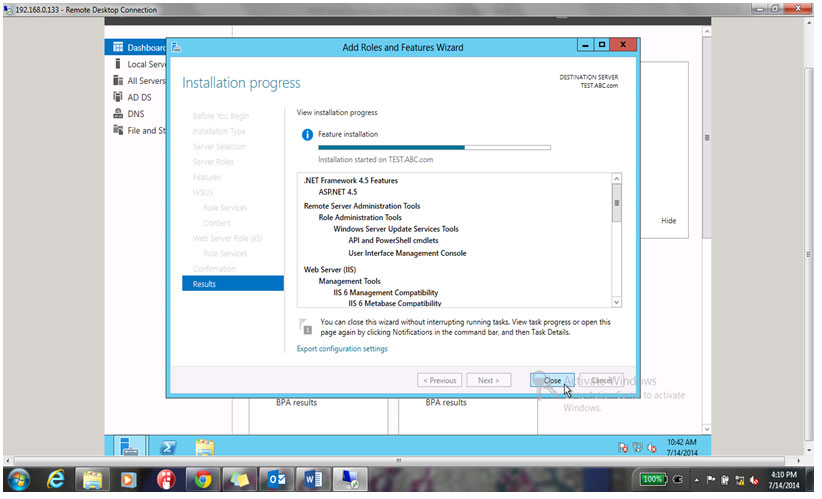

25-1

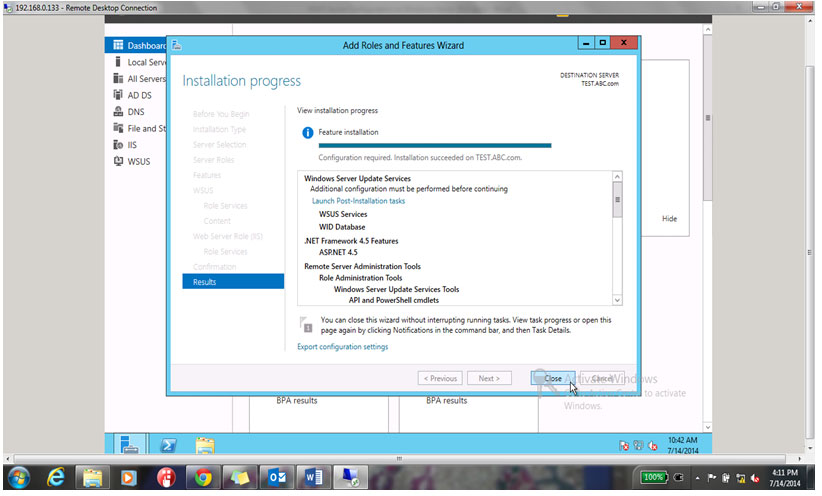

26. Click on Close to finish the installation Setup

Click on Close to finish the installation Setup

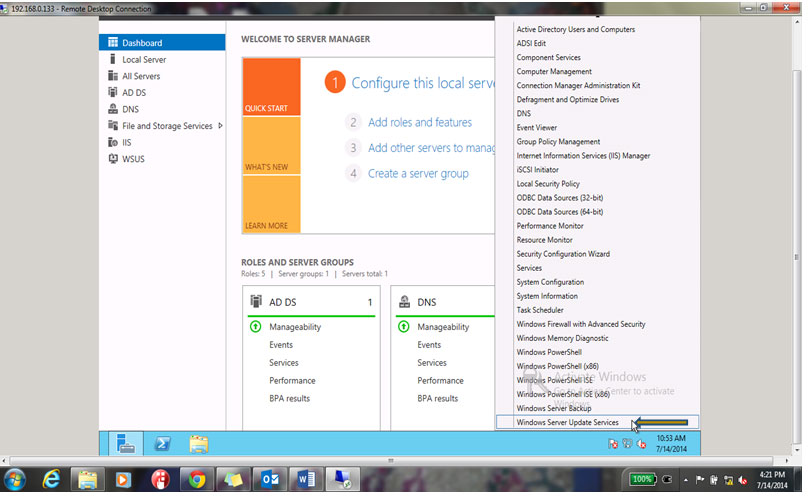

27. Open Windows Software Update Services (WSUS) from the Tool Menu given on the Top right Corner of Server Manager Dashboard.

Windows Software Update Services (WSUS)

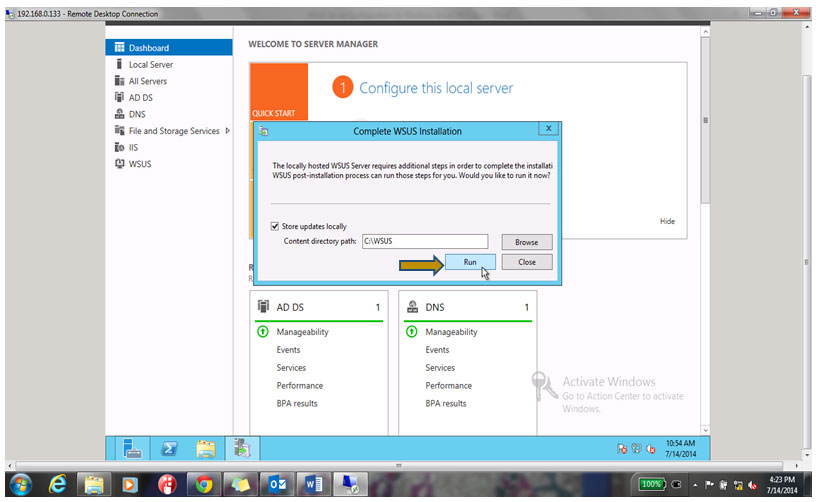

28. Click on Run button as shown to complete the WSUS update installation

WSUS update installation

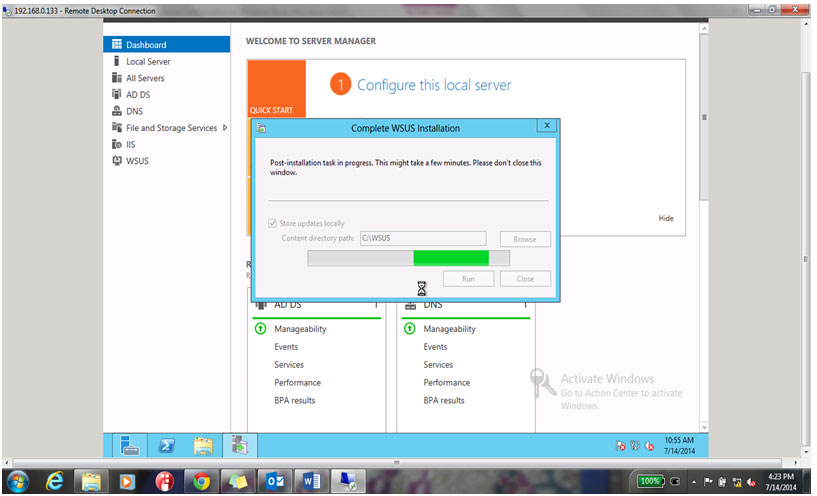

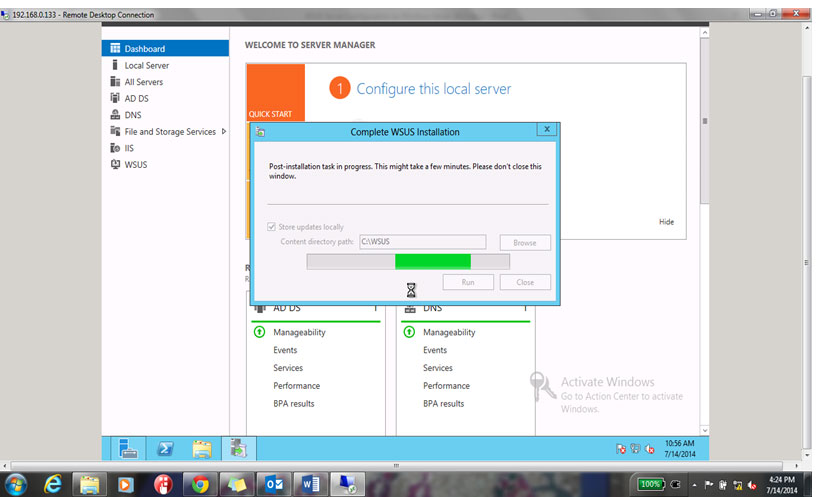

29. You can see the installation progress as shown below

installation progress



29-1

30. Post installation task completed successfully, click on close to exit

installation task completed successfully

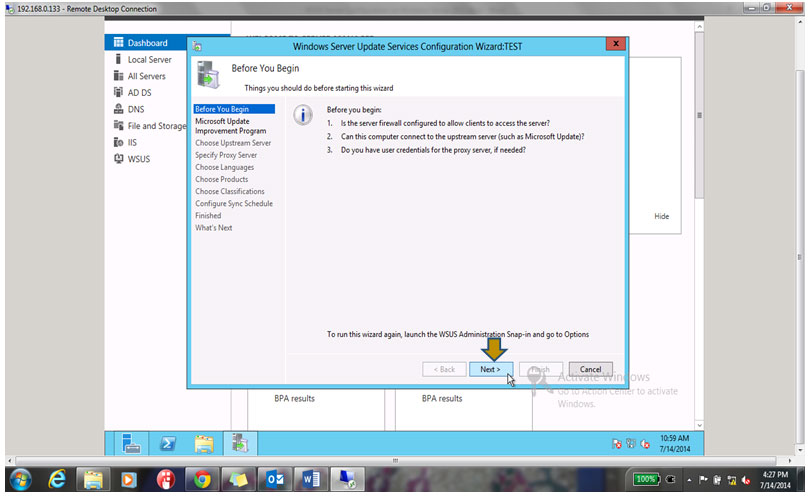

31. As you close the windows WSUS Configuration wizard will open, click on Next to continue

windows WSUS Configuration

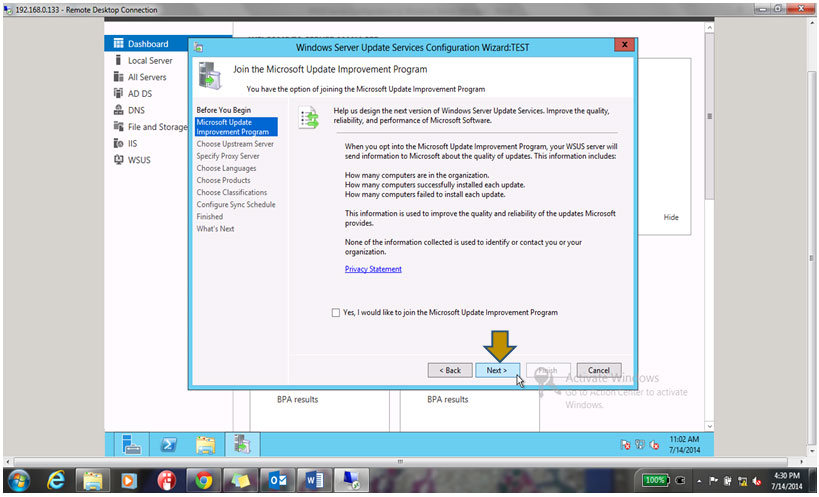

32. Uncheck “ yes I would like to join Microsoft Update Improvement program” and click on next to continue as shown below

Microsoft Update Improvement

33. Click on Next to continue

Click on Next to continue

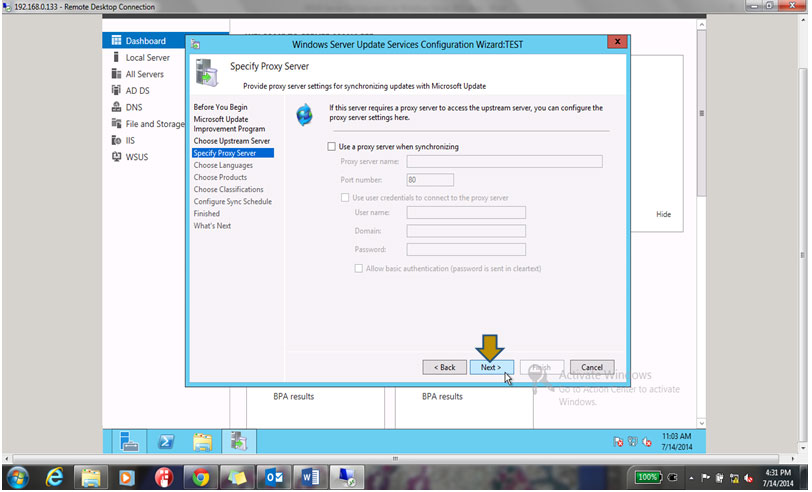

34. As we are not using any proxy server , Click on Next to continue as shown below

 Click on Next to continue as shown below

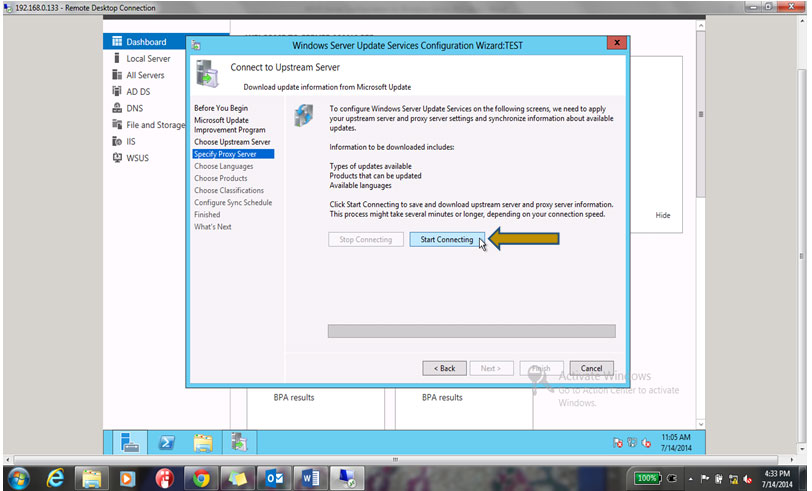

35. Click to Start Connecting button to continue

Click to Start Connecting button to continue

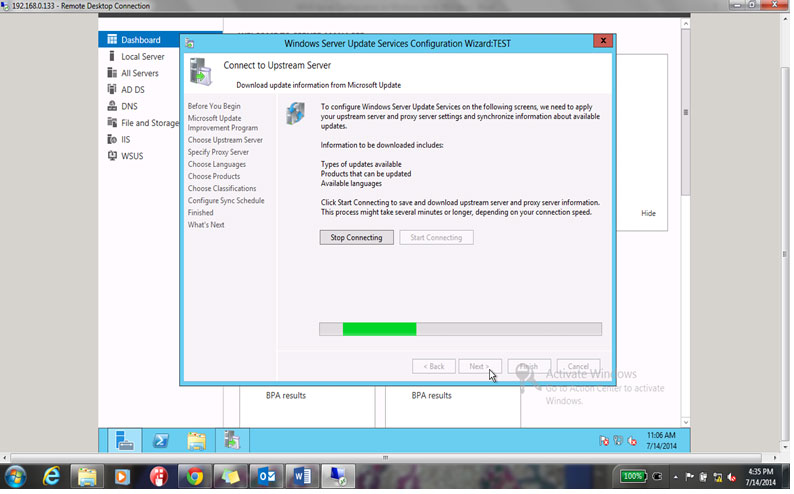

36. You can see the server has started connecting with save and download upstream server

connecting

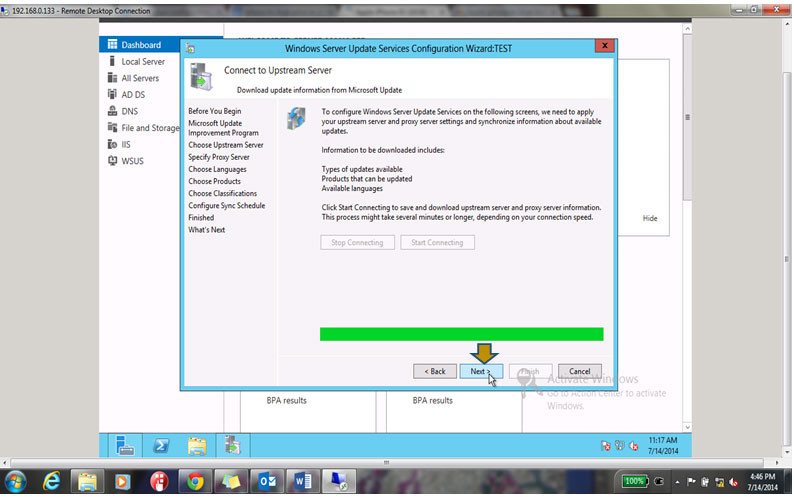

37. Once it is complete click on Next to continue as shown below

 complete click on Next to continue as shown below

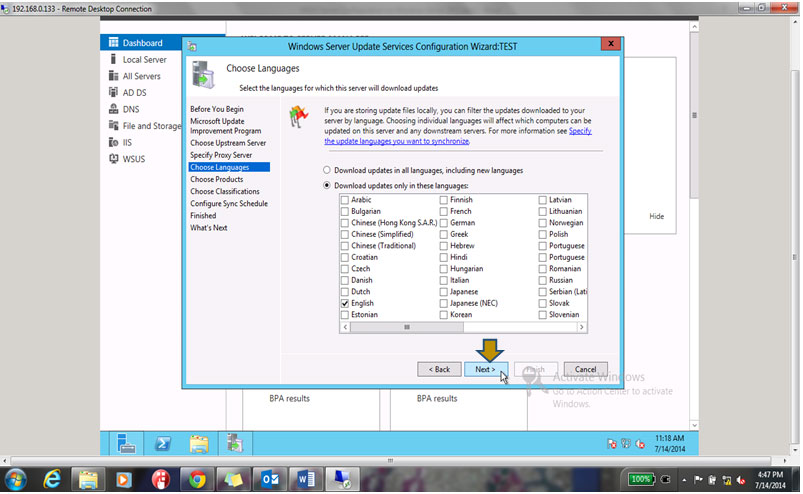

38. Select English Language for Updates and click on Next

 English Language for Updates and click on Next

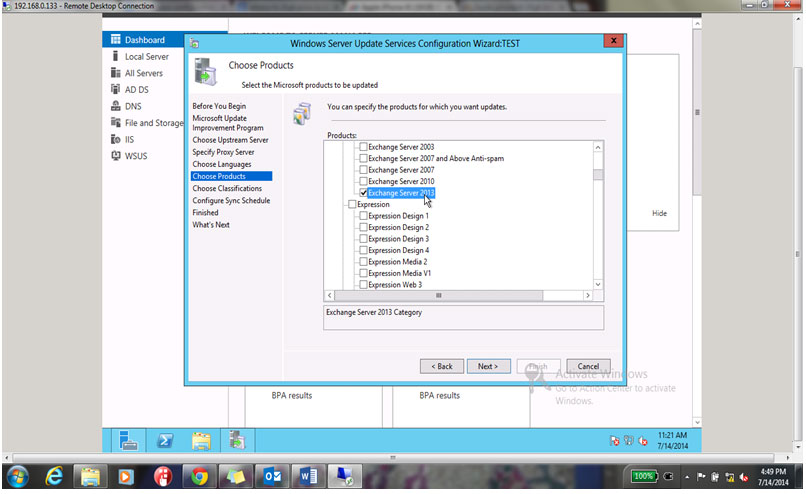

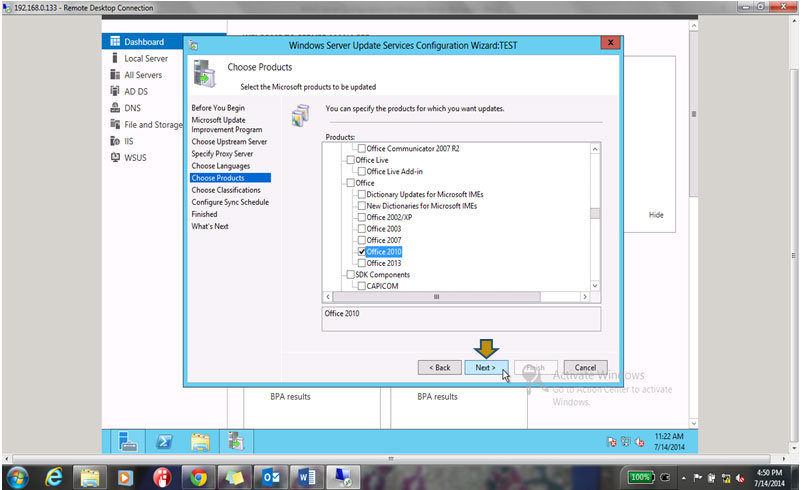

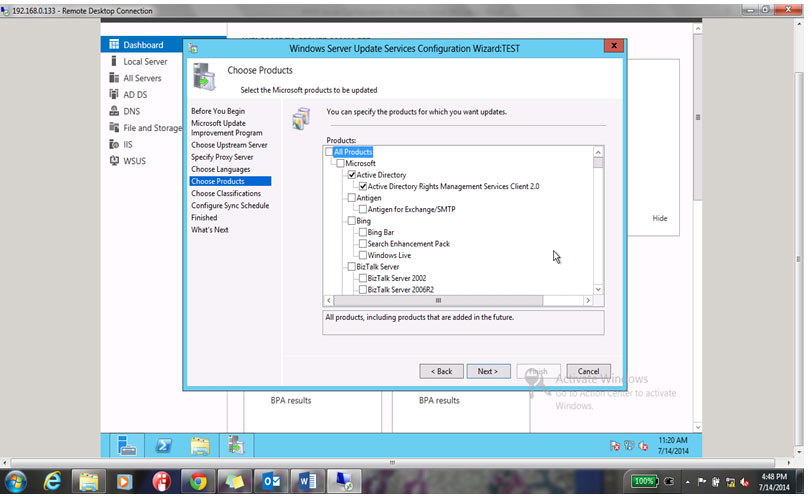

39. Choose the products for which you required updates, click on next to continue as shown below

 required updates



39-1

39-2

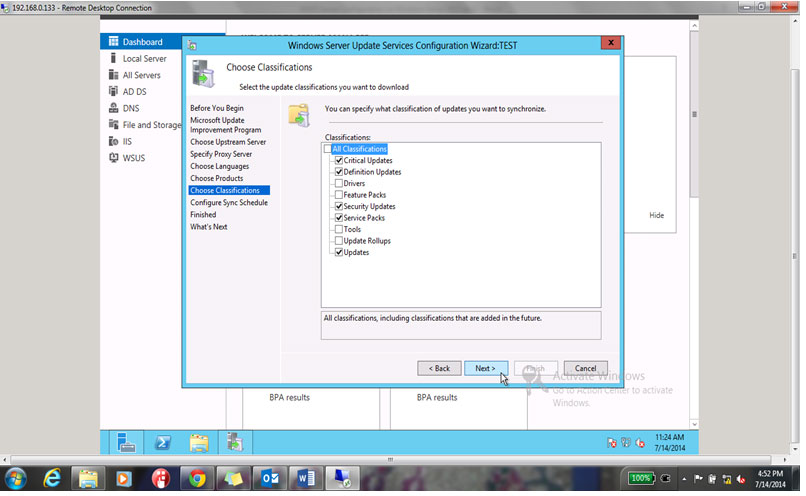

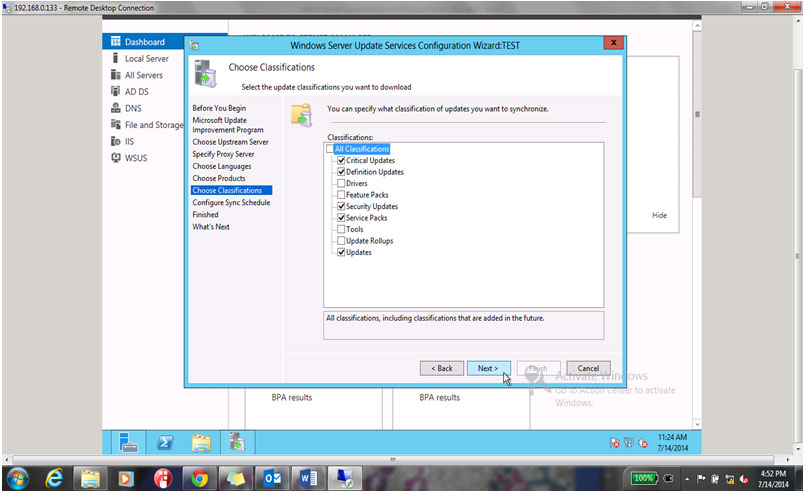

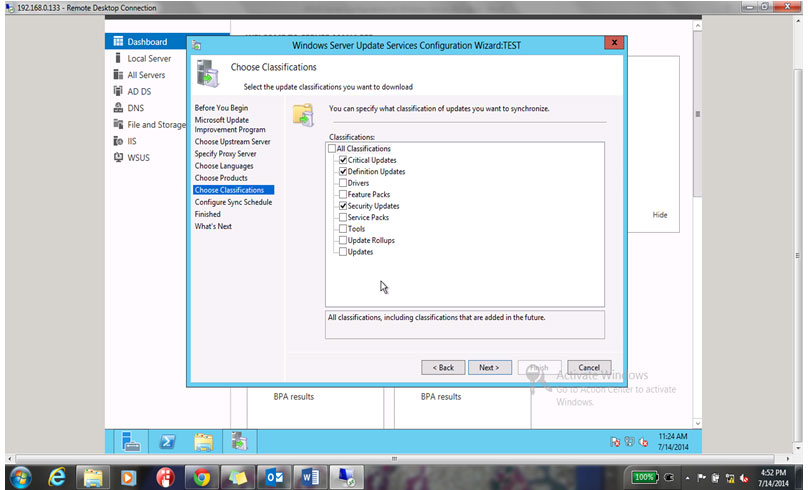

40. On the next screen specify the requirement as shown

screen specify the requirement as shown

40-1

41. Click on Next to continue as shown

Click on Next to continue as shown

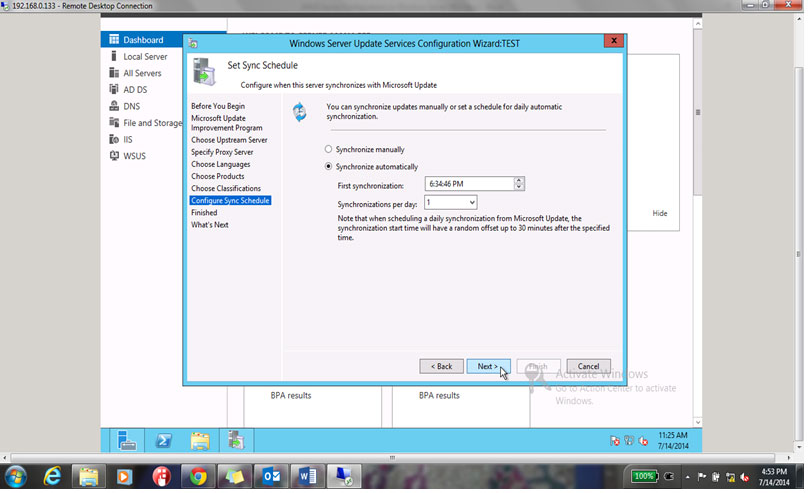

42. Choose Synchronize Automatically and click on Next

Synchronize Automatically and click on Next

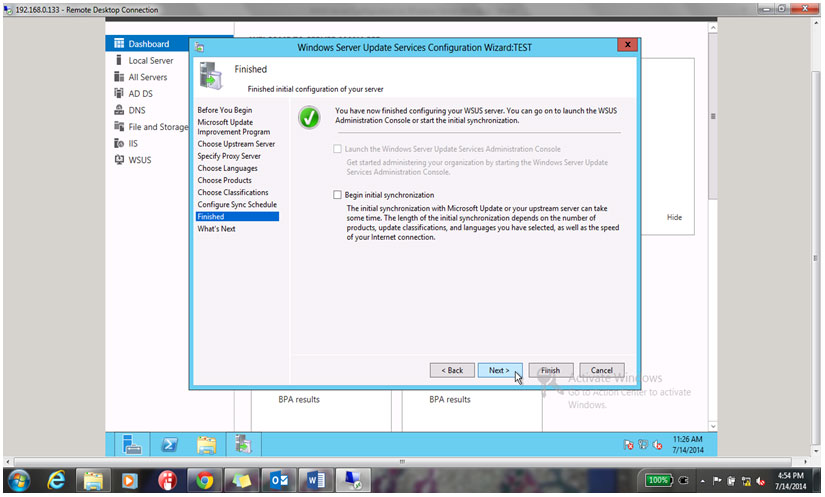

43. Click on Next to continue

Click on Next to continue

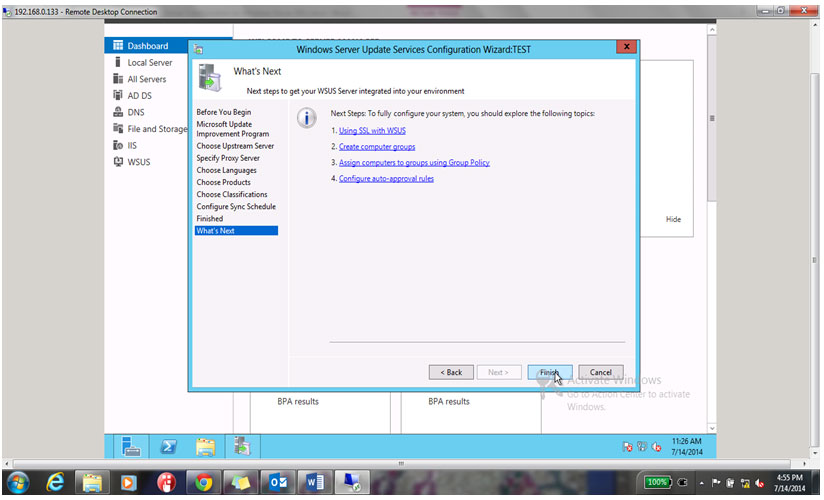

44. Click on finish to complete the configuration Setup.

Click on finish to complete the configuration Setup.

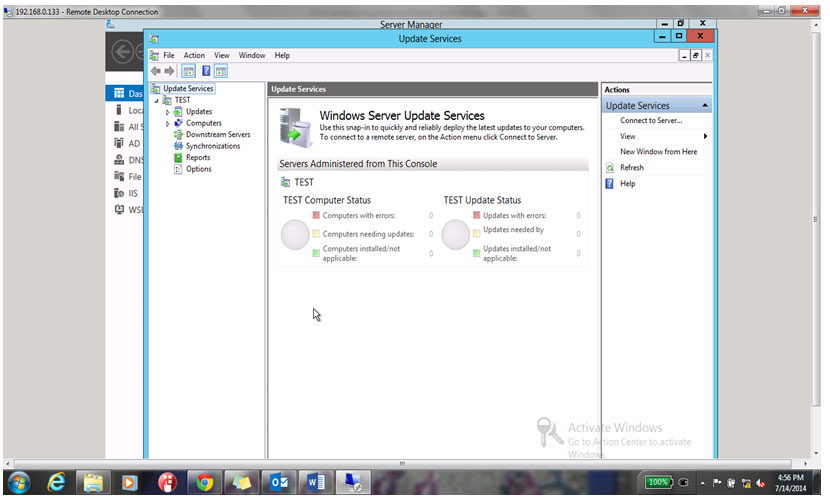

45. You can see your WSUS server has been Setup.

You can see your WSUS server has been Setup.

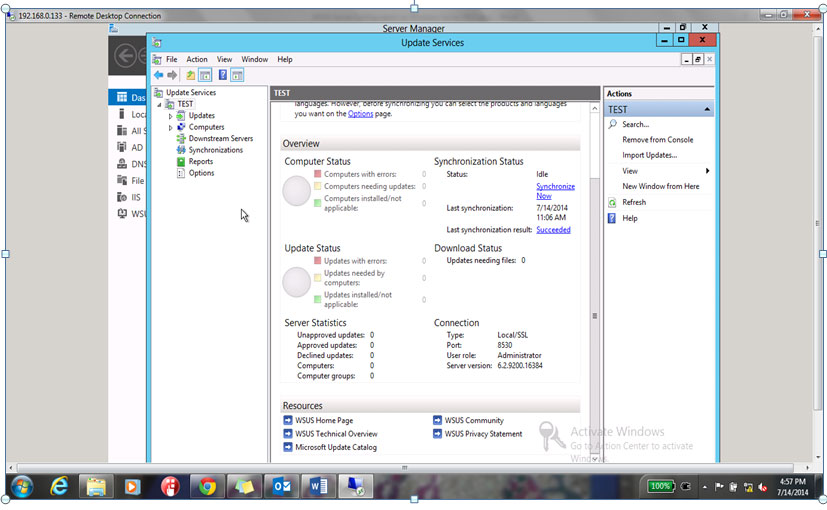

46. Your WSUS is fully prepared; you can now add Computer from Active Directory and Approve or Reject Security updated as per your company policy.

 WSUS is fully prepared

This is how we can Install and configure WSUS Setup on windows Server 2012.
